Preformed Suspension clamp for ADSS long span
Preformed Suspension clamp for ADSS long span is intended for use on ADSS cable relative long span (more than 300m span).The product is designed as a combination of two layer of preformed rods to reduce the static and dynamic stresses at the support point,the fatigue resistance of ADSS cable is greatly improved.Double support suspension products are available.During installation,care should be taken to ensure a successful installation.This product is intended for use by trained craftspeople only.

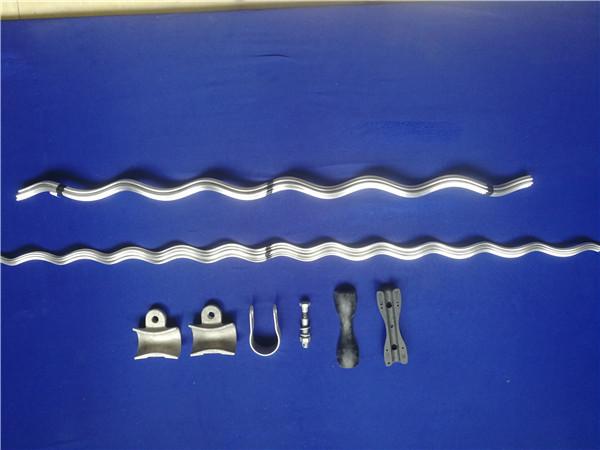

Armor Grip Suspension for conductor consists of the following parts:
1, Structural Reinforing Rods, material: Galvanized Steel,Aluminum Clad Steel,Aluminum Alloy.
2, Out Rods material: Galvanized Steel,Aluminum Clad Steel,Aluminum Alloy.
2, Housing, material: High-Strength Aluminum Alloy.
3, Insert. material: EPDM rubber, aluminum alloy reinforcement .
4, U clamp, material: High-Strength Aluminum Alloy.
5, Bolt. material: Galvanized Steel.
| Model |
Available Dia. of Cable |
Length (mm) |
Weight(kg) |
Accessories |
Available Span |
| (mm) |
Outer Rods |
Reinforced Rods |
Links |
(m) |
| AXY 0960 400 |
9.0-9.6 |
1070 |
1720 |
1.23 |
ZH-7 |
U-7 |
300/400 |
| AXY 1010 400 |
9.7-10.1 |
1070 |
1720 |
1.23 |
ZH-7 |
U-7 |
300/400 |
| AXY 1060 400 |
10.2-10.6 |
1070 |
1720 |
1.28 |
ZH-7 |
U-7 |
300/400 |
| AXY 1110 400 |
10.7-11.1 |
1070 |
1720 |
1.28 |
ZH-7 |
U-7 |
300/400 |
| AXY 1160 400 |
11.2-11.6 |
1090 |
1720 |
1.35 |
ZH-7 |
U-7 |
300/400 |
| AXY 1200 400 |
11.7-12.0 |
1170 |
1860 |
1.53 |
ZH-7 |
U-7 |
300/400 |
| AXY 1270 400 |
12.1-12.7 |
1170 |
1860 |
1.53 |
ZH-7 |
U-7 |
300/400 |
| AXY 1290 400 |
12.8-12.9 |
1170 |
1860 |
1.58 |
ZH-7 |
U-7 |
300/400 |
| AXY 1360 400 |
13.0-13.6 |
1240 |
1920 |
1.66 |
ZH-7 |
U-7 |
300/400 |
| AXY 1410 400 |
13.7-14.1 |
1240 |
1920 |
2.15 |
ZH-7 |
U-7 |
300/400 |
| AXY 1450 400 |
14.4-14.5 |
1300 |
2000 |
2.25 |
ZH-7 |
U-7 |
300/400 |
| AXY 1510 400 |
14.6-15.1 |
1300 |
2000 |
2.46 |
ZH-7 |
U-7 |
300/400 |
| |
|
|
|
|
|
|
|
| AXY 1270 600 |
12.1-12.7 |
1260 |
1960 |
1.63 |
ZH-7 |
U-7 |
500/600 |
| AXY 1290 600 |
12.8-12.9 |
1260 |
1960 |
1.69 |
ZH-7 |
U-7 |
500/600 |
| AXY 1360 600 |
13.0-13.6 |
1360 |
2060 |
1.80 |
ZH-7 |
U-7 |
500/600 |
| AXY 1410 600 |
13.7-14.1 |
1360 |
2060 |
2.34 |
ZH-7 |
U-7 |
500/600 |
| AXY 1450 600 |
14.2-14.5 |
1400 |
2100 |
2.40 |
ZH-7 |
U-7 |
500/600 |
| AXY 1510 600 |
14.6-15.1 |
1400 |
2100 |
2.62 |
ZH-7 |
U-7 |
500/600 |
| AXY 1580 600 |
15.2-15.8 |
1400 |
2160 |
2.70 |
ZH-7 |
U-7 |
500/600 |
| AXY 1600 600 |
15.9-16.0 |
1460 |
2160 |
3.01 |
ZH-7 |
U-7 |
500/600 |
| AXY 1690 600 |
16.1-16.9 |
1460 |
2160 |
3.01 |
ZH-7 |
U-7 |
500/600 |
| |
|
|
|
|
|
|
|
| AXY 1410 800 |
13.7-14.1 |
1360 |
2060 |
2.34 |
ZH-7 |
U-7 |
700/800 |
| AXY 1450 800 |
14.2-14.5 |
1460 |
2210 |
2.51 |
ZH-7 |
U-7 |
700/800 |
| AXY 1510 800 |
14.6-15.1 |
1460 |
2210 |
2.74 |
ZH-7 |
U-7 |
700/800 |
| AXY 1580 800 |
15.2-15.8 |
1460 |
2280 |
2.83 |
ZH-7 |
U-7 |
700/800 |
| AXY 1600 800 |
15.9-16.0 |
1520 |
2280 |
3.15 |
ZH-7 |
U-7 |
700/800 |
| AXY 1690 800 |
16.1-16.9 |
1520 |
2340 |
3.19 |
ZH-7 |
U-7 |
700/800 |
| AXY 1730 800 |
17.0-17.3 |
1560 |
2340 |
3.35 |
ZH-7 |
U-7 |
700/800 |
| AXY 1800 800 |
17.4-18.0 |
1560 |
2340 |
3.35 |
ZH-7 |
U-7 |
700/800 |
| |
|
|
|
|
|
|
|
| AXY 1510 1000 |
14.6-15.1 |
1500 |
2360 |
2.86 |
ZH-7 |
U-7 |
900/1000 |
| AXY 1580 1000 |
15.2-15.8 |
1560 |
2480 |
3.05 |
ZH-7 |
U-7 |
900/1000 |
| AXY 1600 1000 |
15.9-16.0 |
1600 |
2590 |
3.43 |
ZH-7 |
U-7 |
900/1000 |
| AXY 1690 1000 |
16.1-16.9 |
1600 |
2590 |
3.43 |
ZH-7 |
U-7 |
900/1000 |
| AXY 1730 1000 |
17.0-17.3 |
1600 |
2590 |
3.56 |
ZH-7 |
U-7 |
900/1000 |
| AXY 1800 1000 |
17.4-18.0 |
1600 |
2590 |
3.56 |
ZH-7 |
U-7 |
900/1000 |
Slip load:not less 10-15% RTS of the ADSS,
Products can be customized according to customer requirements.
