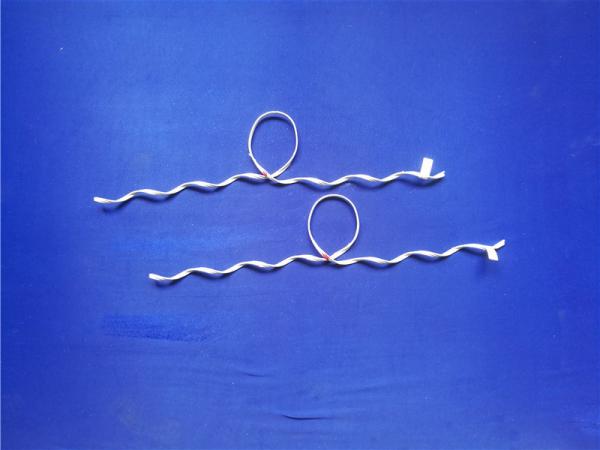

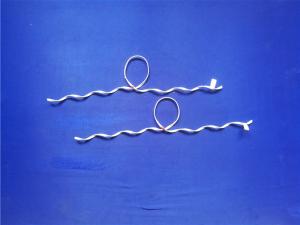

2 Rods Preformed Wire Ties

  • 1
  • 2

Brand Name : HLLP

Model Number : TP8000

Place of Origin : CHENGDU CHINA

MOQ : 100 sets

Price : US$ 0.4-5 per set

Payment Terms : T/T, L/C

Supply Ability : 10000 sets per month

Delivery Time : 10-20 days

Packaging Details : Carton pallets,wooden cases, or as required by customer

Material : aluminum clad steel

Helical direction : right hand is standard

Sandard : GB,or according to customer requirement

Customized products : yes

Contact Now

Side ties

Side ties are made of aluminum clad steel,and are designed to secure bare conductor and plastic jacketed conductor in the side groove of interchangeable head style insulators and provide superior abrasion protection for the conductor.In case that the ties apply on plastic jacketed conductor,the tube can be disposed of.To ensure proper fit,it is necessary to provide dimension of insulator,especially neck diameter.During installation,care should be taken to ensure a successful installation .This product is intended for use by trained crafts people only.

Side ties for bare conductor and insulated conductor
Medel of bare conductor Medel of insulated conductor Dia.of conductor No.of rods
Min. Max.
P8100A P8200A 4.83 5.46 2
P8101A P8201A 5.47 6.20
P8102A P8202A 6.21 7.04
P8103A P8203A 7.05 8.00
P8104A P8204A 8.01 9.07
P8105A P8205A 9.08 10.29
P8106A P8206A 10.30 11.66
P8107A P8207A 11.67 13.21
P8108A P8208A 13.22 14.94
P8109A P8209A 14.95 16.89
P8110A P8210A 16.90 19.18
P8111A P8211A 19.20 21.79
P8112A P8212A 21.82 24.59

Products can be customized according to customer requiremts.

.
